Restaurant
An airlock at the door, so the wind does not blow straight into the dining room. Sidewalk seating is a separate question, and a new sidewalk cafe cannot be fully enclosed.
Winter Enclosures | New York / Tri-State
Winter vestibules and enclosures for New York storefronts
For restaurants, retail, building entrances, and events.
A second door against the wind, or a clear-panel cover. Pick a type below, then send photos. Arc coordinates the design, the shop drawings, and the install with fabrication partners.
- NYC / tri-state
- Entry vestibules and dining covers
- Shop drawings with fabrication partners
- Arc does not file permits
- Seasonal sidewalk vestibules: Nov 15–Apr 15
Type chart
Pick a type, the colors, and the name
Eighteen planning drawings, all from the same angle. Each one is drawn large enough to read the door, the roof, and the panels. Solid color is the fabric or the rigid panel. Light blue panes are clear vinyl, acrylic, or glass. The gold band is the header, where the business name goes. The label under each drawing names the size. These drawings are not shop drawings, and they are not photos of finished Arc projects.
- 1 Pick a type
- 2 Pick frame and panel colors
- 3 Add the name
- SizeThe label names it: single entry, lobby, cafe room, walkway, corner, sidewalk seating, events, or pod. Every drawing is enlarged so the door and the panels stay readable.
- MaterialFabric, clear vinyl, wood, glass, aluminum, polycarbonate, acrylic.
- SeasonSeasonal sidewalk vestibule, year-round path, private property, or open air. A new sidewalk or roadway cafe cannot be a sealed room.
Entry vestibules
Start here. A New York winter vestibule is usually a box at the door: flat or peaked, solid fabric or clear panels, a door on the front or the side, and the business name on the header.
Small entry vestibule
A flat-roof box at one door. Fabric walls, a clear vinyl window, and the name on the header.
Medium lobby vestibule
Wide enough for people to pass. Door on the side wall, a clear panel across the front.
Large cafe room
A room-sized enclosure for a waiting area or a private patio, not a sealed sidewalk cafe.
Peaked gable vestibule
The same entry box with a high peak, so snow and rain leave the roof.
Glass and aluminum entry
Storefront framing and a mullion grid. The year-round version, with a permit path of its own.
Wood-frame vestibule
Thicker painted wood posts and lap siding, with a clear window and the name on the header.
Swing-door vestibule
A hinged door that swings out, with room for the maneuvering clearance at the handle.
Sliding-door vestibule
Two panels on a head track, for a door that should not sweep the sidewalk.
Corner wraparound
An L at a corner door: one run across the front, one run down the side.
Covers beyond the door
Curtains, rigid panels, tents, and pods. A new sidewalk or roadway dining setup cannot be a sealed room. These drawings keep that difference visible.
Awning with roll-down curtains
A cover on the wall, clear curtains rolled up, and one panel dropped.
Zippered vinyl panels
Clear panels joined by zippers, so a wall can open without coming off the frame.
Polycarbonate panels
Rigid clear panels with horizontal ribs in a heavier frame. A longer install, not a rolled curtain.
Acrylic glass-look
Two large clear panes and a thin frame, closer to glass than to a vinyl curtain.
Sidewalk cafe screen
A low rail, a cover, and a clear screen that stops short of the roof. Not a sealed room.
Roadway dining cover
Barriers on the street sides, a cover overhead, and a screen only on the road face.
Tent with sidewalls
A peaked fabric roof on posts, with clear sidewalls and a zipper door.
Retractable-roof enclosure
Clear walls with a roof that opens in the middle and closes when the weather turns.
Dome and cabana pod
A freestanding clear pod. A cabana is the same idea with a flat roof and a lower wall.
Where it goes
Restaurant, retail, entrance, or an event
The door, the sidewalk, and the property line decide which drawing is even allowed. A room inside the building line is not the same filing as a box on the sidewalk.
Retail
A small entry at one door, with the business name on the header. Send a front photo and a side photo, and the width of the opening.
Building entrance
A lobby-size vestibule, or a glass-and-aluminum entry if the enclosure stays up. A unit that stays up is an alteration, not a seasonal storm enclosure.
Events
A tent with sidewalls on private property. That is a Department of Buildings question, not a Dining Out license.
How it works
From photos to install
Five steps. Arc does not publish a week count. Timing depends on the opening, the materials, and which reviews apply.
- 01
Photos and measurements
Front and side photos, width, depth, height, door count, and the project address.
- 02
Design and rendering
Type, frame, panels, door, and the name on the header, drawn for that opening.
- 03
Permit coordination
Drawings for the partners who file. Arc does not file permits.
- 04
Fabrication
Frame and panels through fabrication partners, from the drawings.
- 05
Install
Installation through licensed partners. A seasonal sidewalk vestibule comes down after April 15.

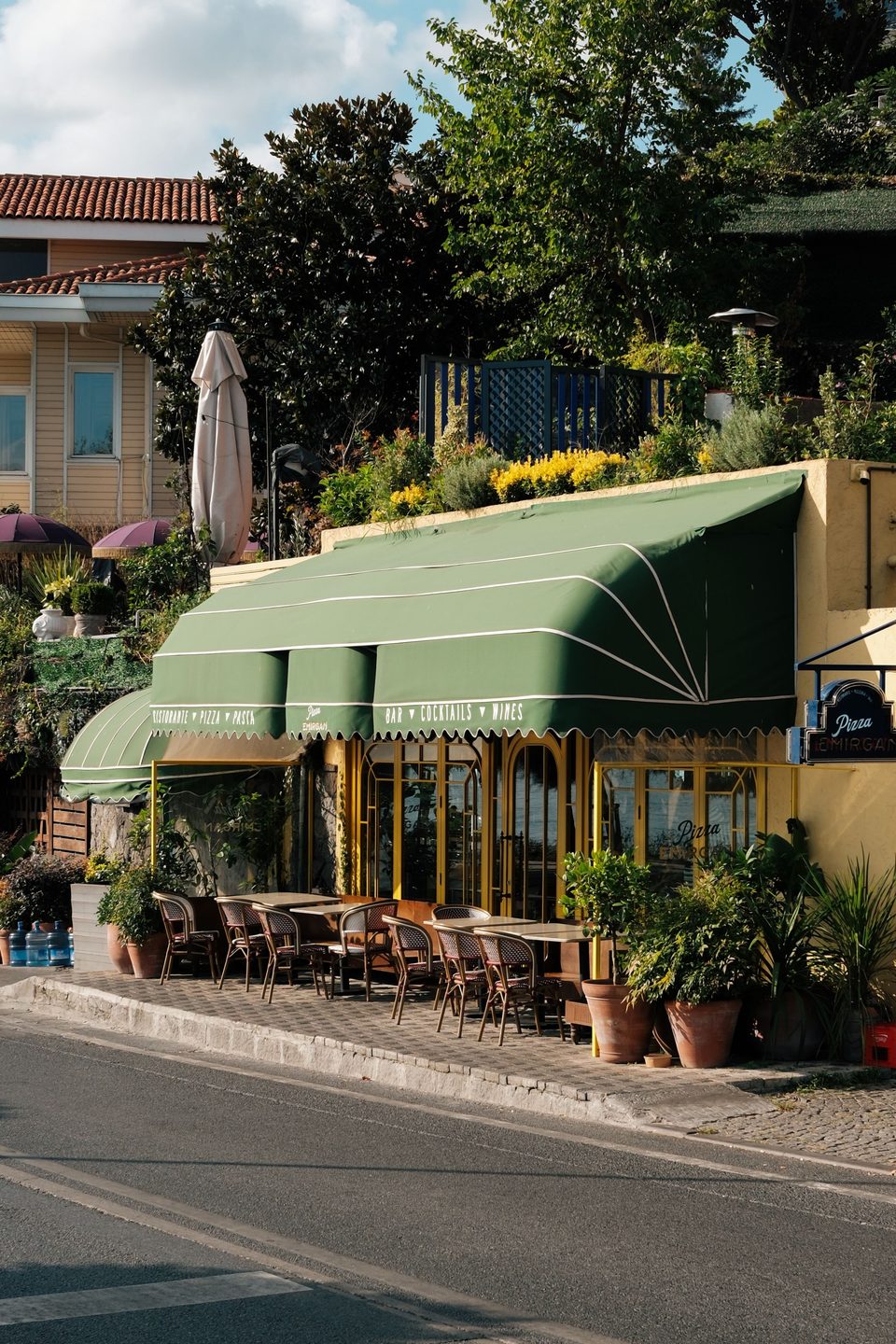

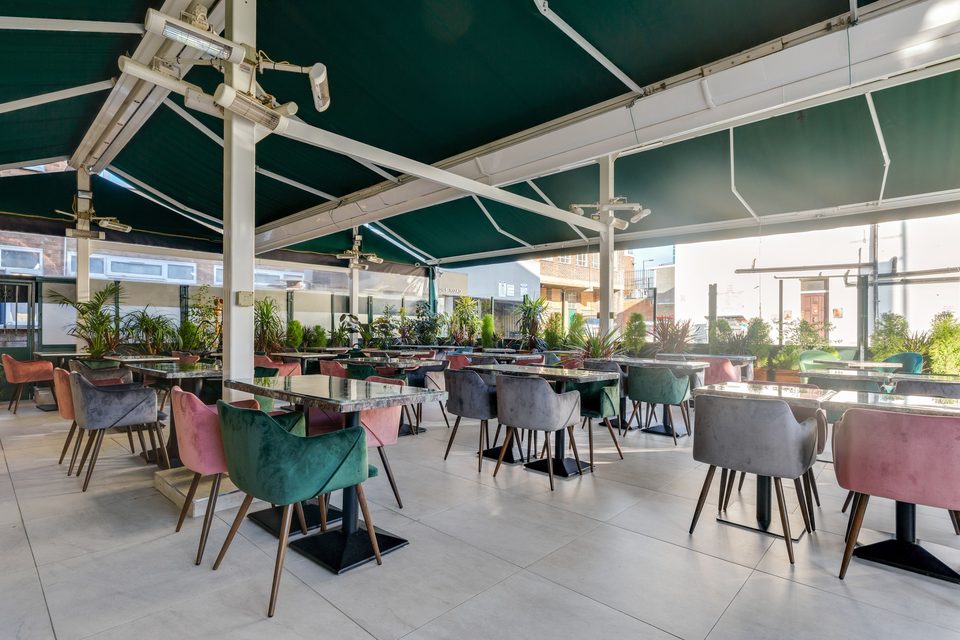

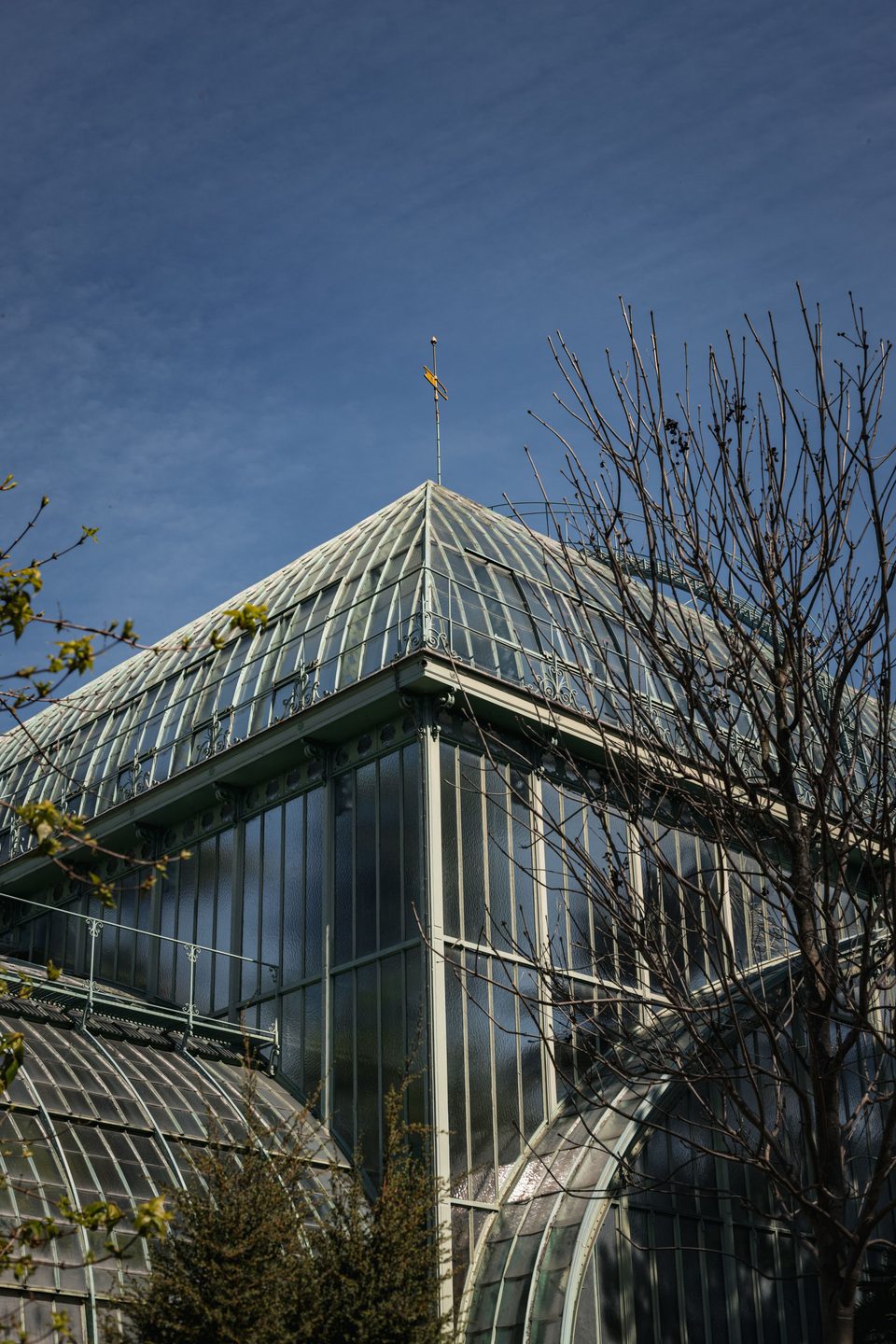

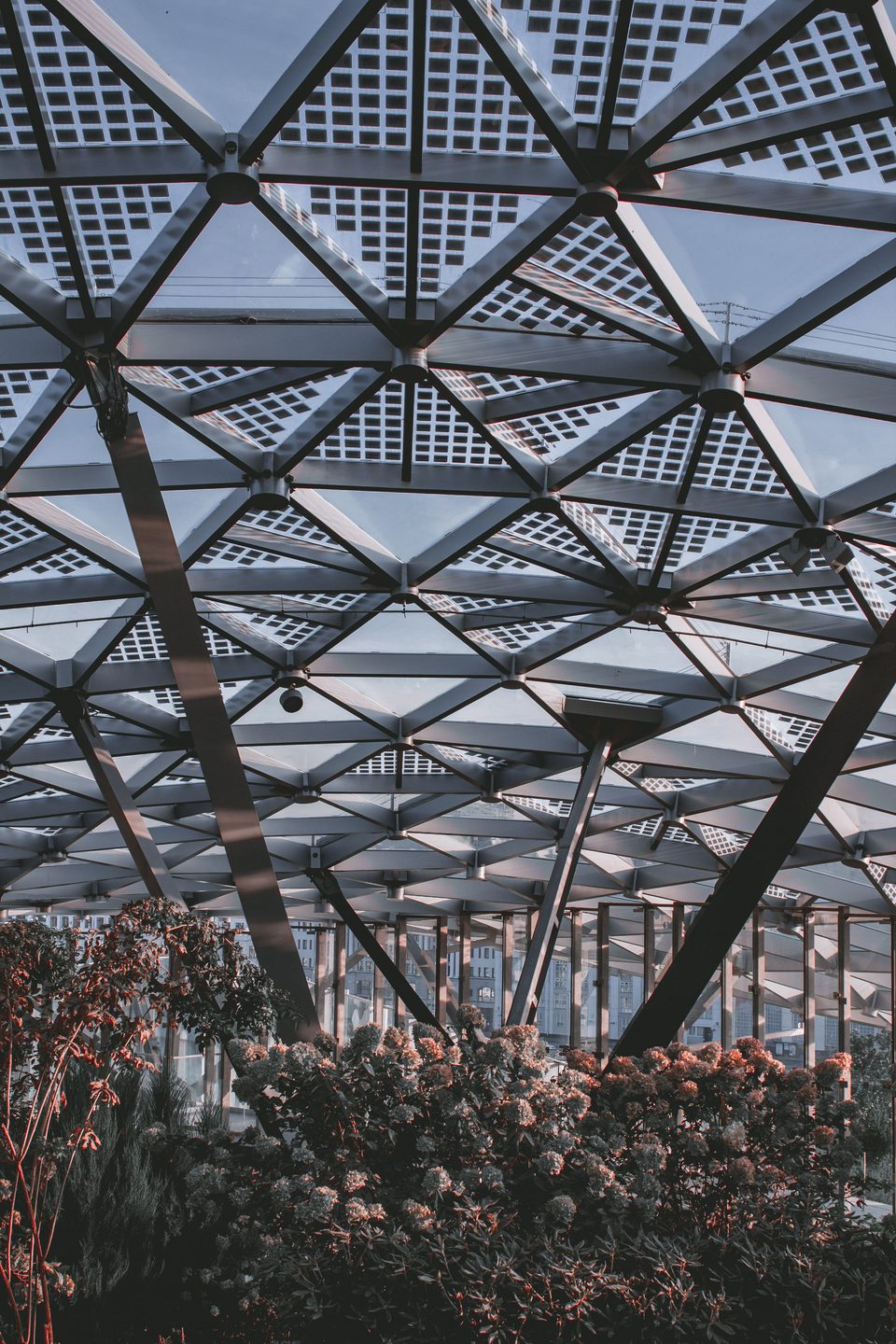

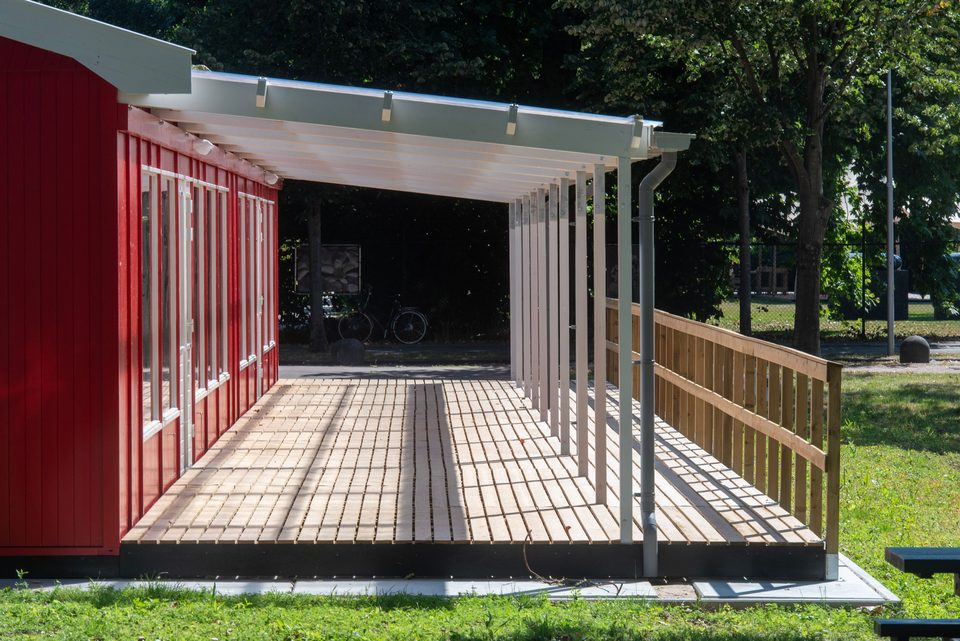

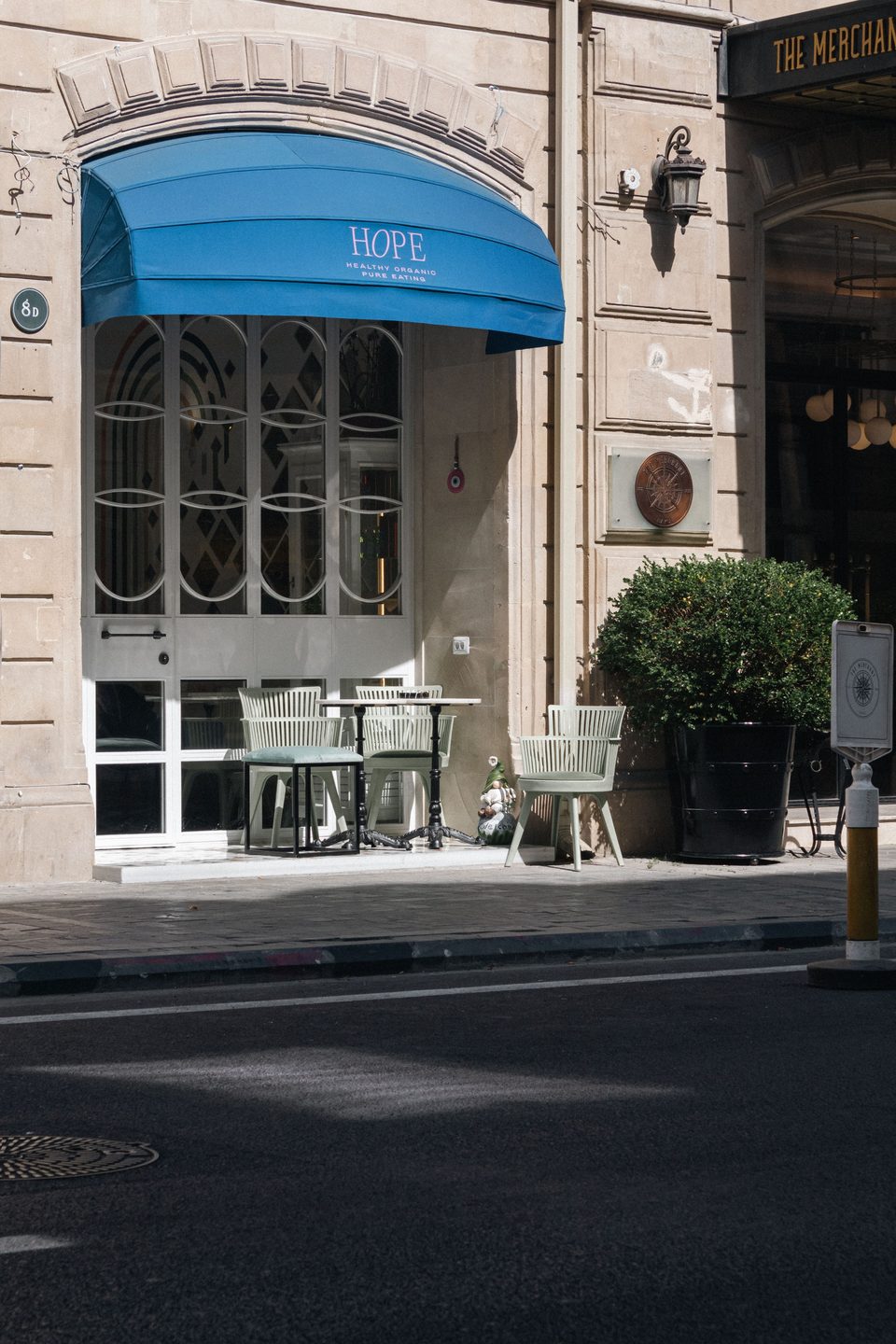

Style examples
Standard covers
These photos are style examples, not Arc Signage Co projects. Free photo libraries do not have a standard New York fabric vestibule. These are the closest ordinary covers: a clear-roof patio, street-cafe awnings, a tented dining cover, and greenhouse glass. Each caption is the nearest name from the type chart.
Quote
Get a quote for this enclosure
Send the type, a photo, and the project address. The 24-hour quote target starts once Arc has photos with measurements (or drawings, if you have them) and the project street address.
- Photos of the front and the sideRequired
- Width, depth, and heightRequired
- Street address of the projectRequired
- Door count, and sidewalk, roadway, or private propertyIf you have it
- A note on heat. Do not plan on propane.If you have it
- Business name or logoIf you have it
- Landlord rules, or landmark status if knownIf you have it
Permits
Sidewalk, roadway, and private property are different filings
A seasonal box at the door is not a dining room on the sidewalk. Rules change. Confirm the current text with the agency and the licensed applicant. Sources checked October 21, 2026.
Arc does not file permits; licensed partners file.
NYC storm vestibules, Dining Out, heat, and landmarks
Building Code §3202.3.2 allows a temporary storm enclosure from November 15 through the following April 15. It has to come down, and it has to meet the code, including the fire-resistance rating of the building and Chapter 11. For an eating or drinking establishment, §3202.3.2.1 allows up to 25 square feet of projection when 5 feet of clear sidewalk remains and the door clearances in Chapter 11 and ICC A117.1 §404 are met. For other establishments, §3202.3.2.2 limits the projection to 18 inches beyond the street line. NYC311 still describes the 18-inch limit and does not mention the 25-square-foot allowance. The code text controls. NYC311 also takes complaints that a storm enclosure has no permit. Administrative Code §28-105.4 does not list storm enclosures as permit-exempt.
A new sidewalk cafe cannot be fully enclosed. The perimeter barrier is limited to 2 feet 6 inches, excluding plantings, and has to be removable. A roadway cafe is open air. NYC311 says no fully enclosed structures. A roadway cafe may use a cover and a street-side screen up to 6 feet that is not opaque. Sidewalk cafes can run year-round. Roadway cafes do not operate from November 30 through March 31. Year-round roadway license applications open in early September 2026. Existing enclosed sidewalk cafes built under a Department of Buildings permit before March 16, 2020 are a separate case. A sealed room inside the property line is a Department of Buildings filing, not a Dining Out license.
Heaters need Department of Buildings and Fire Department approval. Buildings Bulletin 2024-005 does not allow open-flame natural gas heaters or propane heaters in sidewalk, roadway, and outdoor cafes. A natural-gas radiant heater may be allowed for a sidewalk cafe or an outdoor cafe inside the property line, not for a roadway cafe. Electric heat is a licensed master electrician and an electrical permit. If the enclosure includes an awning or canopy, Building Code §3105.3 applies to that awning or canopy, including the fabric test in that section. Chapter 32 does not name NFPA 701. Light-transmitting plastics have a specification in §2606.4. The 50-foot and 300-square-foot limits are in §2605.2, for exterior plastic veneer. §2607.1 does not allow light-transmitting plastic wall panels in Group A-2, and many restaurants are A-2. Whether a seasonal sidewalk vestibule is that kind of wall panel is confirmed with the licensed applicant.
On a landmark or in a historic district, a vestibule, awning, cover, or conduit attached to the building needs a Landmarks Preservation Commission permit, filed through Portico. The storefronts page says any change to the exterior of a storefront requires a permit, and it still says an unenclosed sidewalk cafe needs LPC and the Department of Transportation. The 2024 amendment to 63 RCNY §2-23 says a sidewalk or roadway cafe that meets the Department of Transportation rules, and is not physically attached to the building or the historic paving, does not need an LPC application. Enclosed sidewalk cafes are not covered by that exception. Check the address. Filing questions belong on sign permits and shop drawings.
FAQ
Enclosure questions
What is the difference between a vestibule and a dining enclosure?
A vestibule is the small room at the door, an air buffer so the wind does not blow straight into the dining room or the shop. A dining enclosure is a cover or a set of panels around seating. On a New York sidewalk, the vestibule is the temporary storm enclosure in Building Code §3202.3.2. A dining setup on the sidewalk or the roadway is the Dining Out program, and a new one cannot be fully enclosed.
When can a temporary storm vestibule stand on an NYC sidewalk?
Building Code §3202.3.2 allows a temporary storm enclosure from November 15 through the following April 15. It has to come down after that, and it has to meet the code, including the fire-resistance rating of the building and Chapter 11. For an eating or drinking establishment, §3202.3.2.1 allows up to 25 square feet of projection when 5 feet of clear sidewalk remains and the door maneuvering clearances in Chapter 11 and ICC A117.1 §404 are met. For other establishments, §3202.3.2.2 limits the projection to 18 inches beyond the street line. NYC311 still describes the 18-inch limit and does not mention the 25-square-foot restaurant allowance. The code text controls, and the licensed applicant confirms the measurement for the address. NYC311 also takes complaints that a storm enclosure does not have a permit. Administrative Code §28-105.4 does not list storm enclosures as permit-exempt, so this page does not claim a seasonal vestibule is permit-free.
Can a new sidewalk or roadway cafe be fully enclosed?
No. The Department of Transportation does not allow new enclosed sidewalk cafes. A sidewalk cafe may not be fully enclosed, and the perimeter barrier is limited to 2 feet 6 inches, excluding plantings, and has to be removable. A roadway cafe is open air. NYC311 says roadway setups cannot be fully enclosed structures. A roadway cafe may use a cover and a street-side clear screen up to 6 feet that is not opaque. Existing enclosed sidewalk cafes that were built under a Department of Buildings permit before March 16, 2020, and lawfully operated between March 16, 2016 and March 16, 2020, are a separate case. A sealed room inside the property line is a Department of Buildings filing, not a Dining Out license.
What if the building is a landmark or in a historic district?
A vestibule, awning, cover, or conduit attached to the building needs a Landmarks Preservation Commission permit, filed through Portico. The storefronts page says any change to the exterior of a storefront requires a permit, and it still says an unenclosed sidewalk cafe needs a permit from LPC and from the Department of Transportation. The May 2024 amendment to 63 RCNY §2-23 says a sidewalk or roadway cafe that meets the Department of Transportation rules, and is not physically attached to the building or the historic paving, does not need an LPC application. Enclosed sidewalk cafes are not covered by that exception. Check the address on the LPC map. Arc does not file permits; licensed partners file.
Can the enclosure be heated?
Heaters need Department of Buildings and Fire Department approval. Buildings Bulletin 2024-005 does not allow open-flame natural gas heaters or propane heaters in sidewalk, roadway, and outdoor cafes. A natural-gas radiant heater may be allowed for a sidewalk cafe or an outdoor cafe inside the property line, not for a roadway cafe, and it needs a licensed master plumber, a Department of Buildings permit, and Fire Department permits and a Certificate of Fitness before it operates. Electric heat is a licensed master electrician and an electrical permit. Do not plan on propane. Older Open Restaurants guidance is not the current rule.
Seasonal or permanent?
A seasonal sidewalk storm vestibule stands from November 15 through April 15 and then comes down. A permanent enclosure stays up and is an alteration. In DOB NOW, Alteration-CO (formerly Alt-1) is the job type when the work changes occupancy or use, makes a major change to exits, is inconsistent with the current certificate of occupancy, changes the number of stories, or has to meet New Building requirements. Other alterations are filed as Alteration, which covers the former Alt-2 and Alt-3. A permanent vestibule is not automatically a minor alteration. The licensed applicant confirms the job type.
What should I send for a quote?
Send photos from the front and the side, the width, depth, and height, the door count, whether the space is sidewalk, roadway, or private property, a note on heat, the business name or logo, and the street address. Email jc@arcsignco.com or arc@arcsignco.com, or call or text (347) 450-2110. The 24-hour quote target starts once Arc has photos with measurements (or drawings) and the project street address.
Who files the permits?
Arc does not file permits; licensed partners file. Arc coordinates the survey, the drawings, and the fabrication and install partners. A registered architect or professional engineer files with the Department of Buildings when the work requires it. A Dining Out license and revocable consent are Department of Transportation filings. Landmark applications go through Portico.
Sources
Public sources
- NYC Building Code §3202.3.2, temporary storm enclosures (UpCodes)
- NYC Department of Buildings: 2022 Construction Codes
- NYC311 KA-02227: storm enclosure complaints
- NYC Administrative Code §28-105.4, work exempt from permit
- Dining Out NYC: enclosed sidewalk cafes
- Dining Out NYC: sidewalk cafe materials
- Dining Out NYC: sidewalk covers, heat, and graphics
- Dining Out NYC: roadway screening, covers, and graphics
- Dining Out NYC: roadway barriers
- DOT notice of adoption, Dining Out NYC rules (PDF)
- NYC311 KA-03604: outdoor dining
- Dining Out NYC: how to apply
- DOB Buildings Bulletin 2024-005 (PDF)
- NYC Department of Buildings: obtaining a permit
- DOB NOW job types (PDF)
- NYC Building Code Chapter 26, plastics, including §2605.2, §2606.4, and §2607.1
- NYC Building Code §3105.3, awnings and canopies
- 63 RCNY §2-23, sidewalk and roadway cafes in LPC jurisdiction
- NYC Landmarks Preservation Commission: storefronts
Rules change. Confirm current requirements with the agency and the project's licensed applicant. Sources checked October 21, 2026.
Request a quote
Planning a winter vestibule?
Email jc@arcsignco.com or arc@arcsignco.com with photos, dimensions, and the project address in the subject line. Call or text (347) 450-2110. Hours are Monday through Friday, 8 AM to 6 PM.
